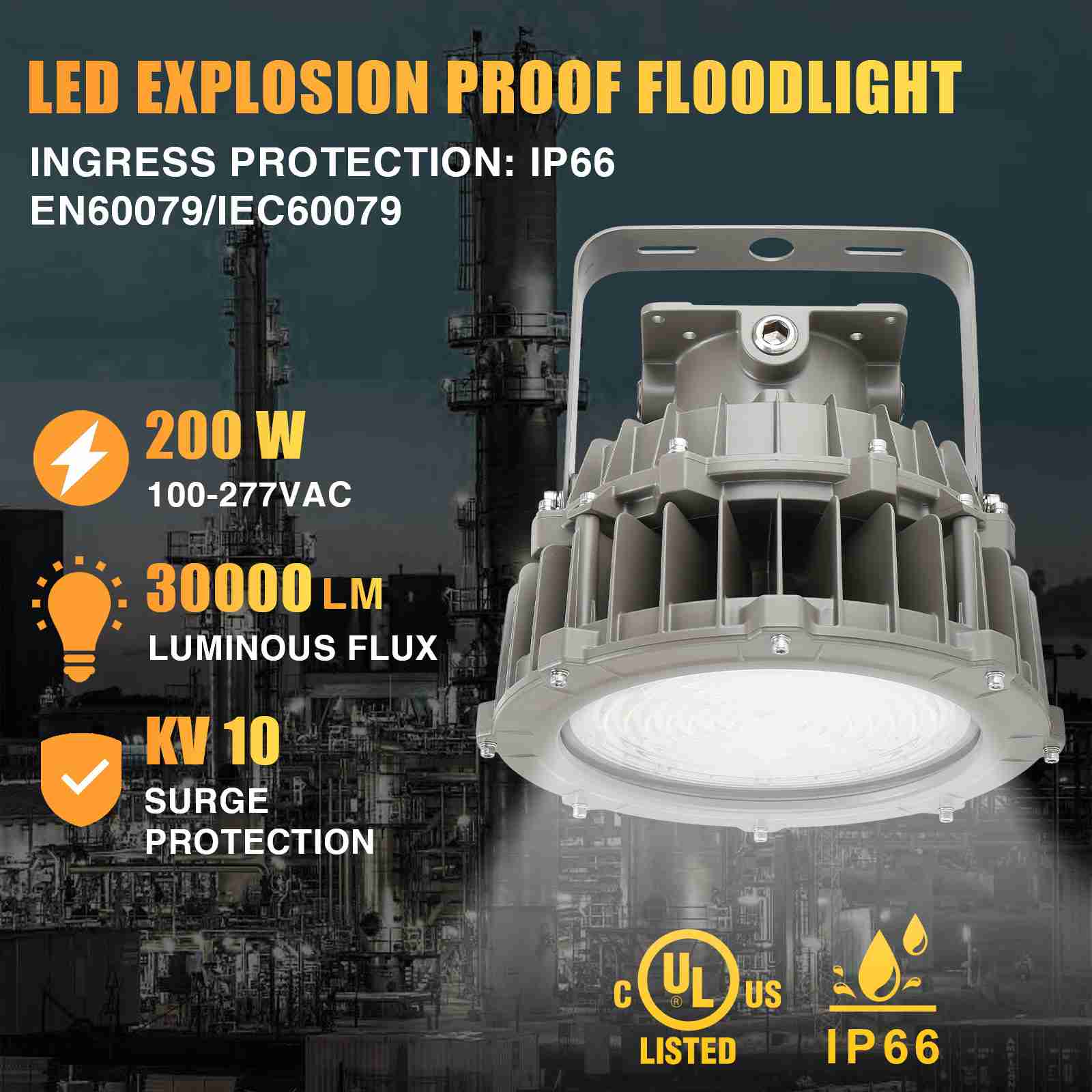

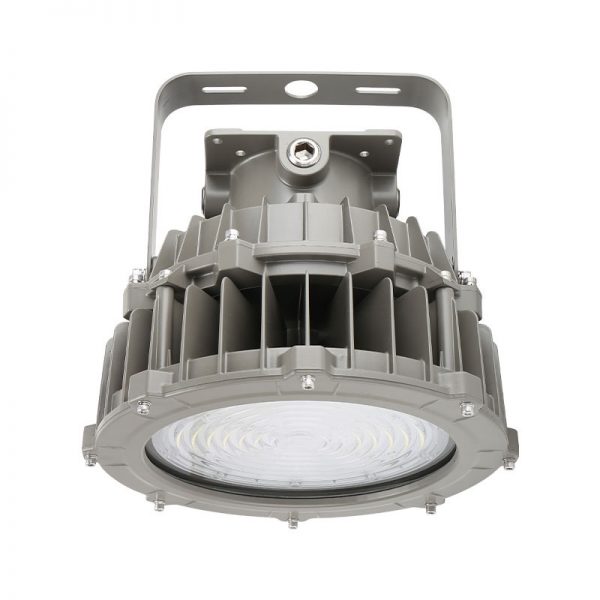

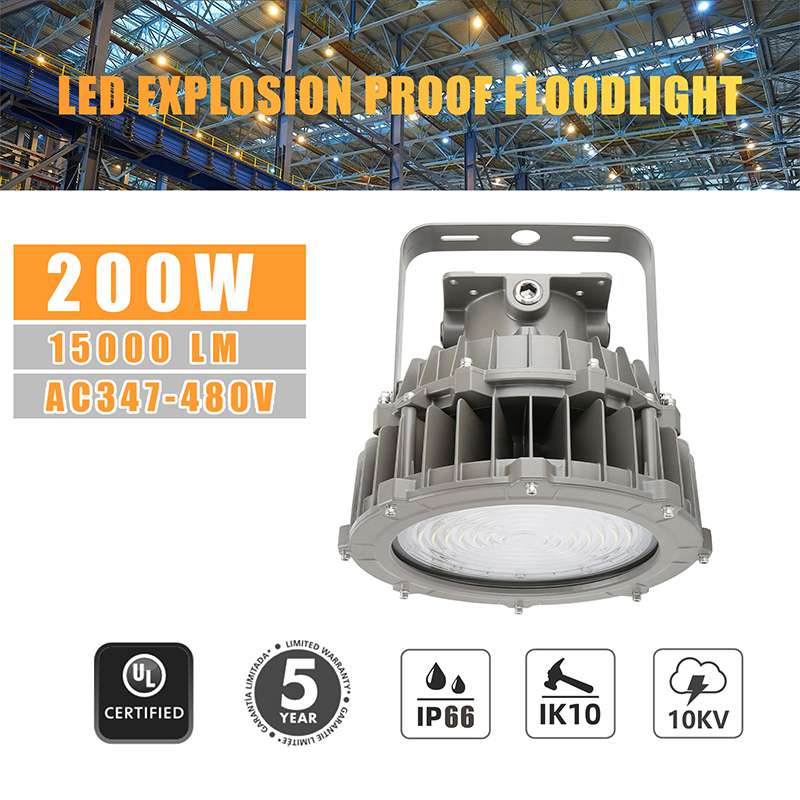

200W Led Explosion Proof Light Fixture 30000 Lumens AC100-277V 5000K IP66 C1D2 ETL UL Listed

What are the advantages of 100W Led Explosion Proof Light Fixture 30000 Lumens AC100-277V 5000K IP66 C1D2 ETL UL Listed?

SPECIFICATION FEATURES
Construction
●Robust cast aluminum housing with low copper content with
stands harsh or hostile environments.
Precise number of fins dissipate maximum amount of heat.
Rugged construction ensures long-life and safe operation.
Resistant to shock and vibration.

Optics
●Three distributions available to maximize versatility:60°,90°,120°.
Scalable Lumen Packages from 10,000 to 30,000 Lumens.
Lenses made of pc will not discolor or shatter, chip or break.
Highly engineered LED system ensures superior uniformity and
maximizes spacing.
●Optics is precisely designed to shape the distribution,maximizing
eficiency and application spacing.

LED Module

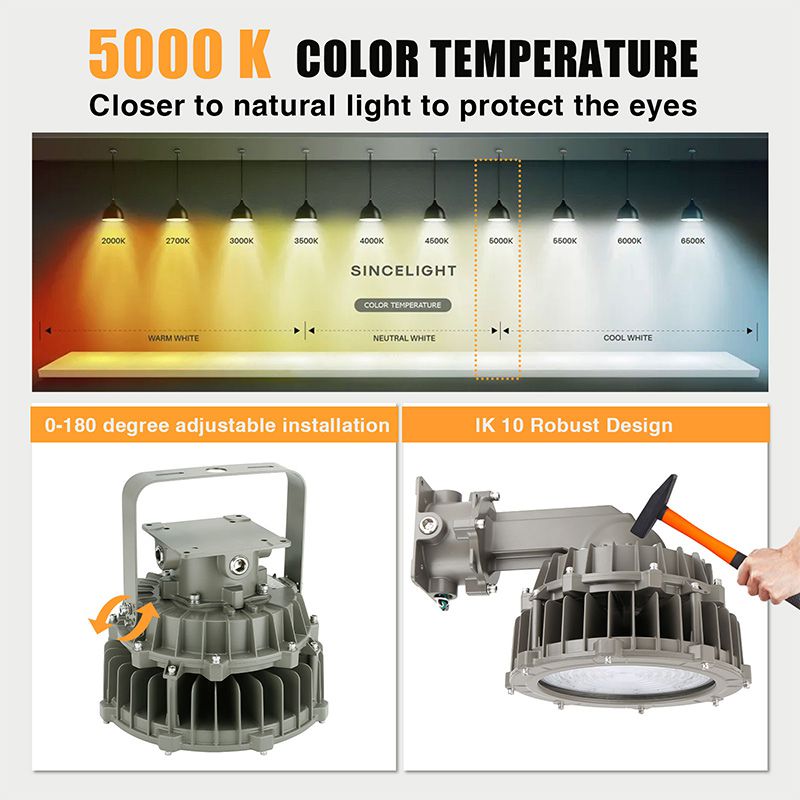

●Single CCT 3000K, 4000K，5000K,5700K are available for standard version.

Electrical

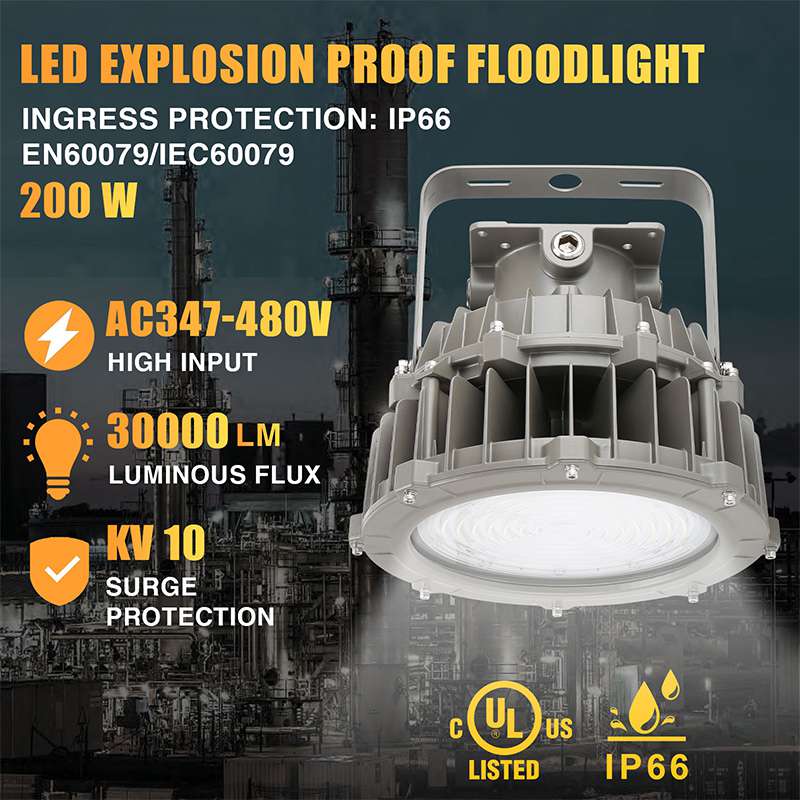

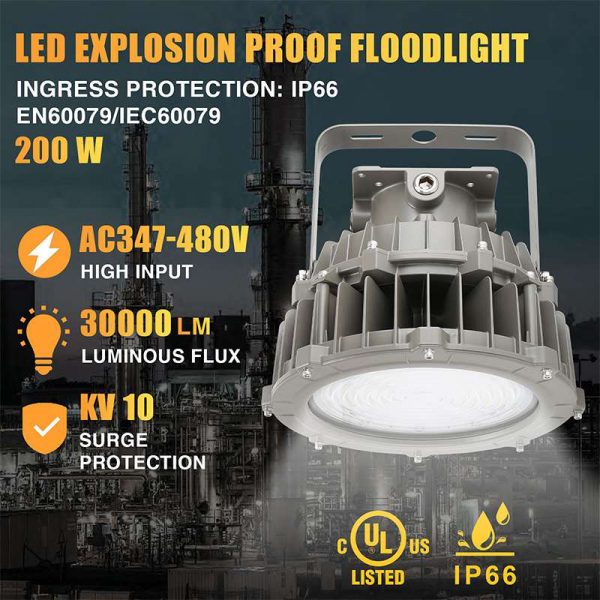

●Universal 120-277 VAC or 347-480 VAC input voltage.
0-10V/PWM/Rx 3-in-1 Dimming
●Both drivers have a power factor >90%, THD <20%.
Operating Temperature Range:-40℃-+65℃
Built in standard surgeprotection with 6KV, with optional separate surge
protection:20KV(120-277V),and 40KV(347-480V).

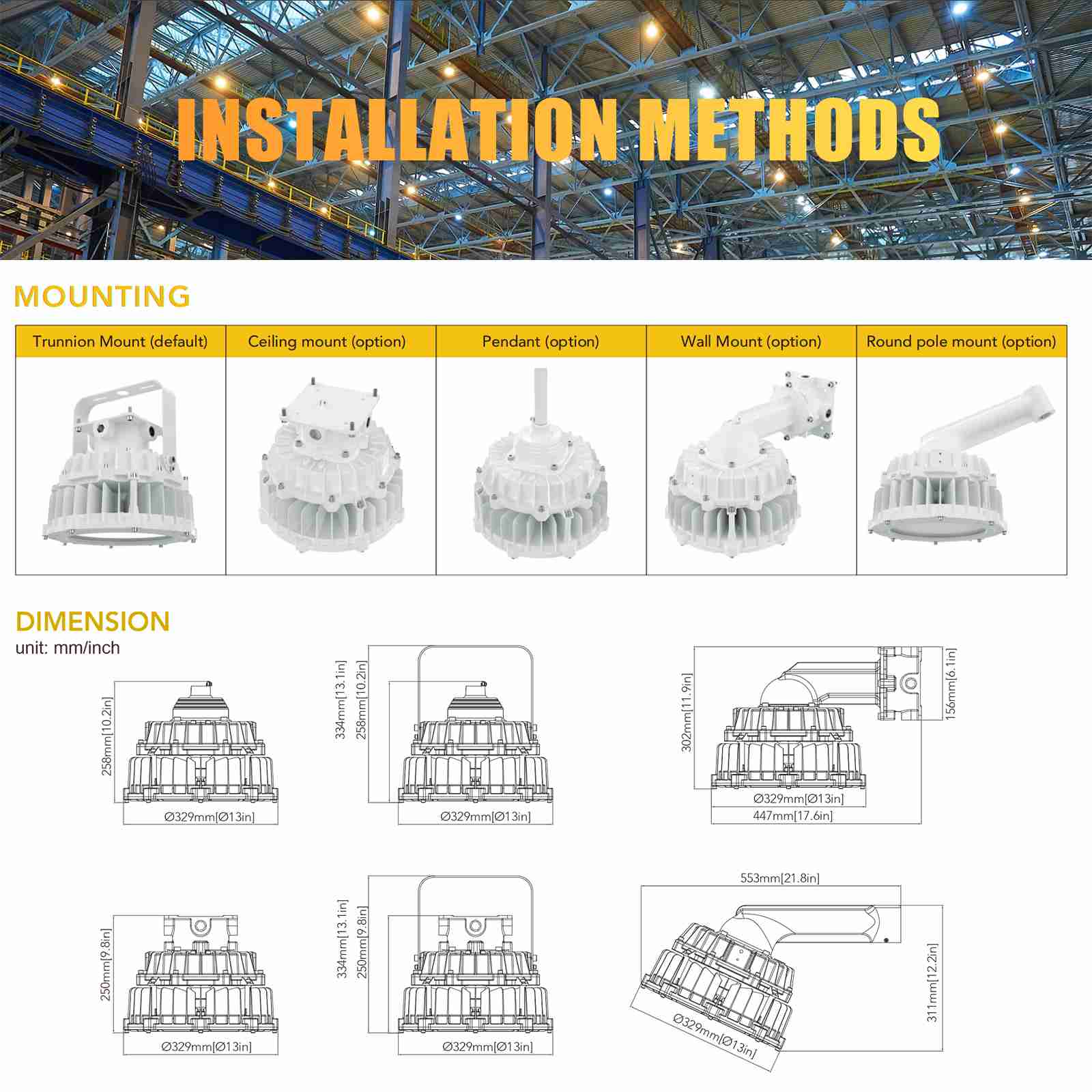

Installation
●Wall mount (option)
●Trunnion mount (default)
Pendant mount (option)
Round pole mount (option)
●Ceiling mount (option)

Lifespan
●Estimated 50,000-hour LED lifespan based on IES LM-80
results and TM-21calculations.

Warranty
●Five-year limited warranty.

Certifications
●UL Listed to US and Canadian Standards.
●Suitable for use in hazardous locations.

Note
●Actual performance may differ as a result of end-user
environment and application.All values are design or
typical values, measured under laboratory conditions at
25°℃(±5°C) specifications subject to change without notice.

Rating and Certificates

• Class l,Division ll,
• Class ll,Division I,

Materials:

Housing : Die-Casting Aluminum
Diffuser: Tempered glass
Bolts: Stainless Steel
Mounting Braket: Stainless steel

Size information:

Widely Applications

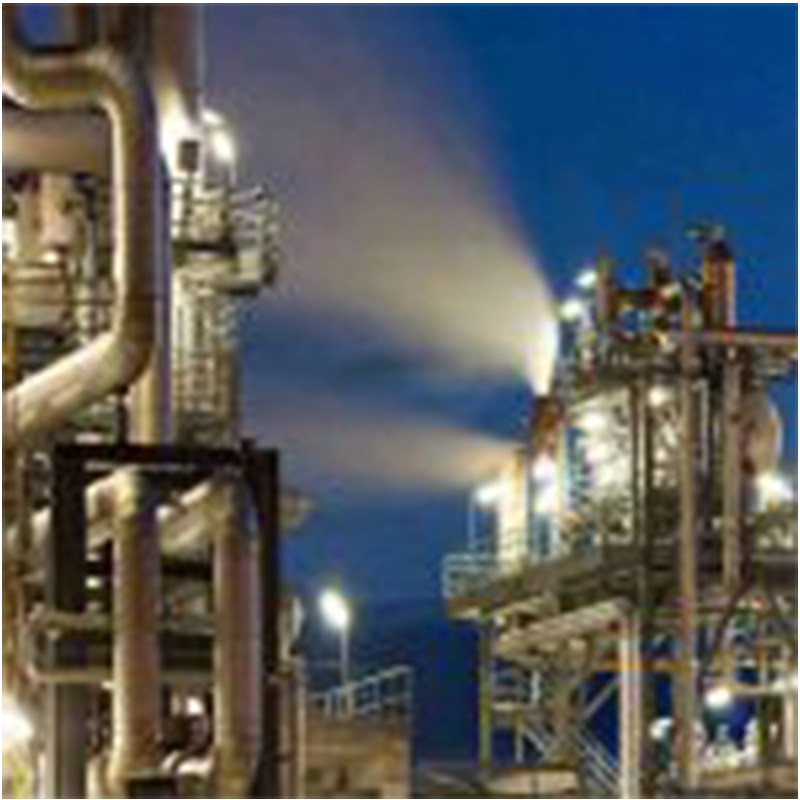

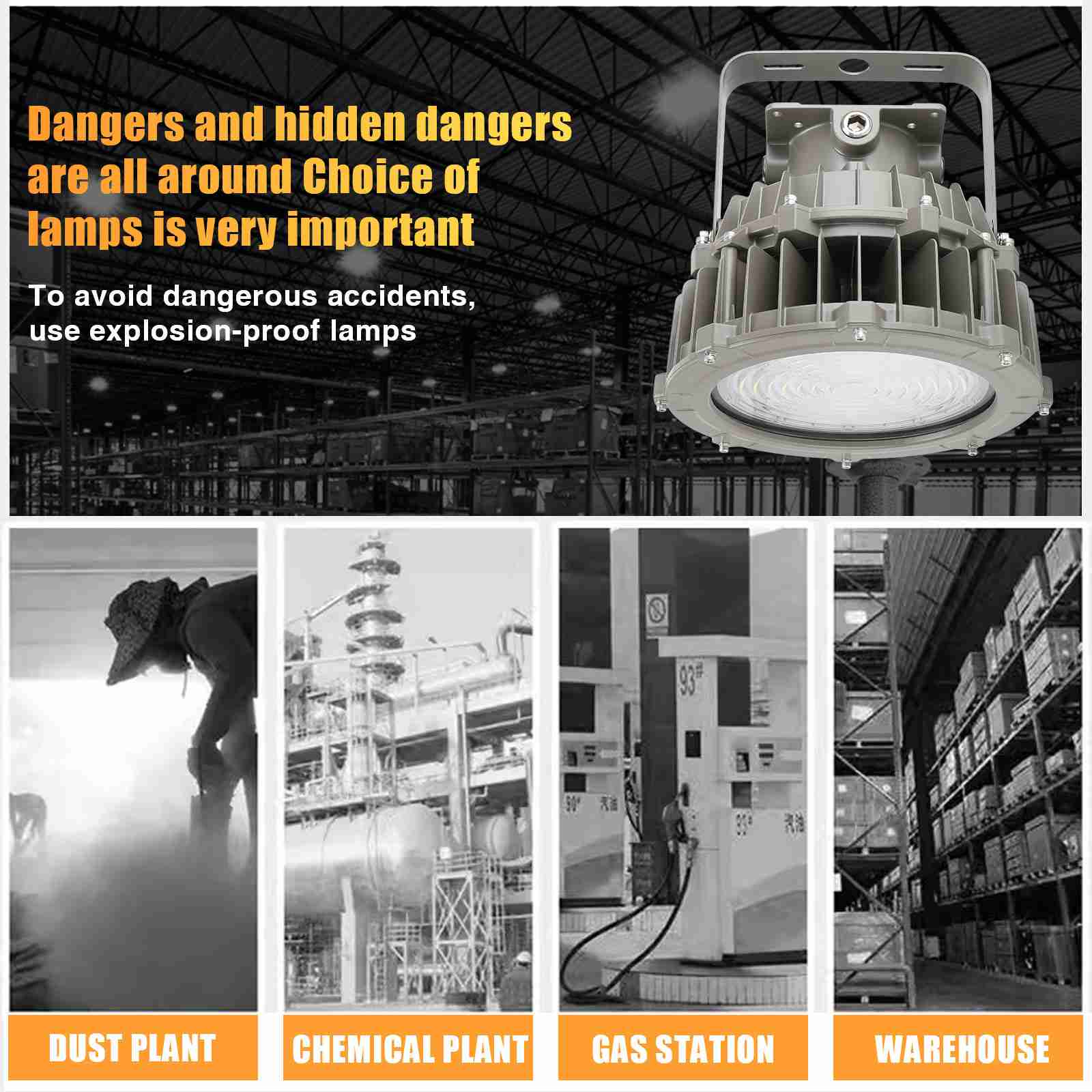

This luminaire can be used as flood light, wall pack and area light which can provide general illumination in hazardous locations, such as: Oil refineries and Gas station, Oil and gasoline loading dock, Distilleries, Painting manufacturing plant, Pumping station, Mine, and Other high humility, high temperature, dusty location.
Oil and Gas industry
All petroleum production and refining
Petroleum loading and transportation
Petroleum storage and retail
LNG industry
All mining operations and service
Chemical industry
All types of painting facilities
Chemical production and storage
Ocean, marine and aerospace field
Ocean platform operation facilities and structure
Aerospace clean room and production
Ocean vessel operations
Metal treatment
Steel and aluminum factories
Pumping stations in any environment
Metal smelting, foundry and manufacturing
Food and alcohol industry
Flour and fine particle production and storage
Food and distilling production
Alcohol industry
Other high humidity, dust, high temperature, vapor locations
